Dude! Where's my dizzy?	Thu, 07 October 2004 20:32

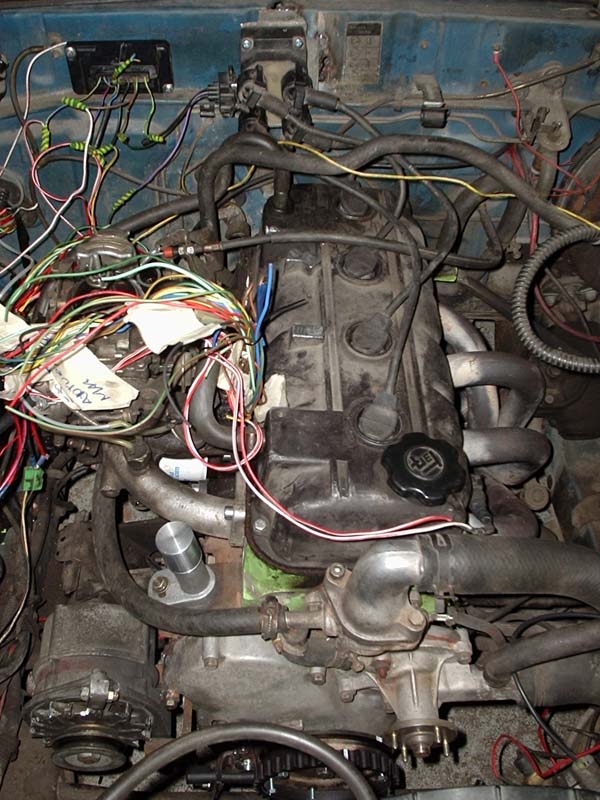

Hi all! I just thought that I should put some pics here of my distributorless ignition system project. This is Mega Jolt Light Junior. It works great and I can recommend this. Full working ignition system has costed: Coil pack 15€ (25AUD) Edis Module 5€ (8AUD) VR sensor 20€ (33AUD) Trigger wheel FREE (own made) PC Board 15 US$ Programmed processor 8 US$ postage 4 US$ Rest of the components 25€ (42AUD) Wires and stuff FREE Which makes 86€ (145AUD), not bad hah? Here's some pics. Don't mind about shitty look of my engine bay. If you wonder about that wire mess, I can say that there is my Megasquirt wiring. Tape connections are temporary . Here's link in case the pic isn't working: http://toyotacover.50megs.com/cgi-bin/i/EFI/NoDizz y.jpg Here you can see the coil pack and igniter. http://toyotacover.50megs.com/cgi-bin/i/EFI/coilpa ckandmodule.jpg Own made trigger wheel and VR sensor. http://toyotacover.50megs.com/cgi-bin/i/EFI/trigge rwheel.jpg Mjlj and megasquirt. http://toyotacover.50megs.com/cgi-bin/i/EFI/interi or.jpg http://toyotacover.50megs.com/cgi-bin/i/EFI/connec ted.jpg ...and this is how it looks like on the computer screen... http://toyotacover.50megs.com/cgi-bin/i/EFI/comput erscreen.jpg Ask anything and I try to answer... [Report message to a moderator]
